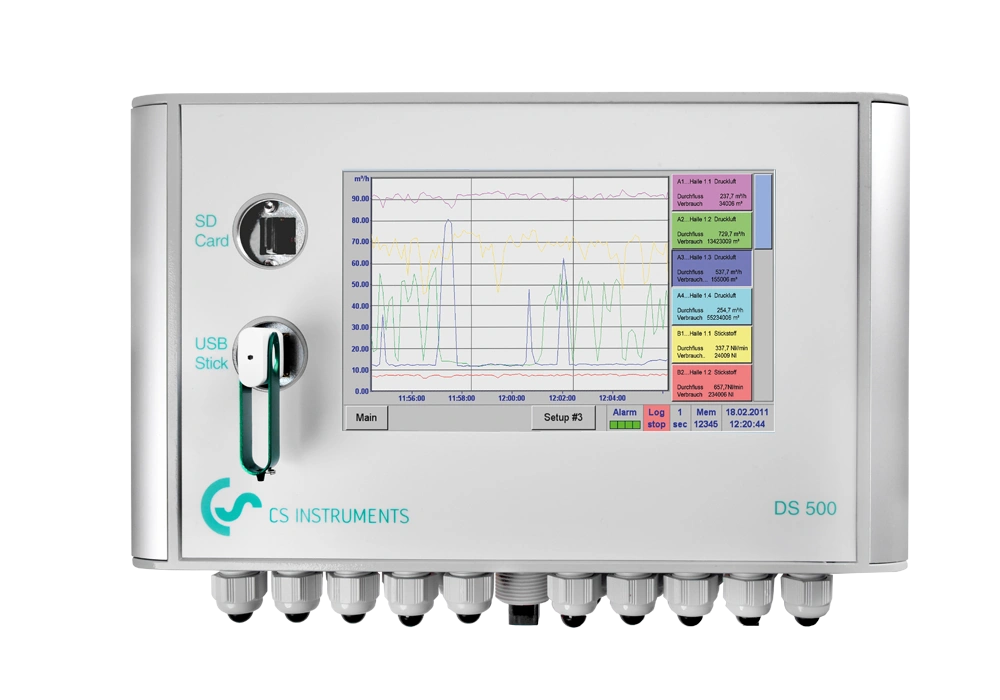

From recording of the measured data, indication on a big colour screen, alerting, storage up to remote read-out via webserver... this is all possible with DS 500. By means of the CS Soft Basic alarms can be sent via SMS or e-mail. All measured values, measured curves and threshold exceedings are indicated. The curve progressions from the beginning of the measurement can be viewed by an easy slide of the finger. Daily/weekly/monthly reports with costs in € and counter reading in m³ for each consumption sensor are completing the sophisticated system concept. The big difference to ordinary paperless chart recorders reveals in the easy initiation and in the evaluation of the measured data. All sensors are identified directly and powered by DS 500. Everything is matched and tuned.
Details
- Clear layout: 7" colour screen with touch panel
- Versatile: Up to 12 optional sensors can be connected
- Suitable for industrial applications: Metal housing IP 65 or panel mounting
- Data available though world wide web: Network-compatible and remote transmission via webserver
- Intelligent: Daily/weekly/monthly reports
- Mathematical function for internal calculations
- Totalizer function for analogue signals
- Saves time and costs during installation
e.g. the typical figures of a compressed air plant:
- costs in € per generated m³ air
- kwh/m³ generated air
- consumption of single lines including summation
e.g. 0/4...20 mA, 0...10 V. In case of third-party sensors which e.g. only give a 4...20 mA signal for the actual flow in m³/h a total counter reading in m³ can be generated by means of the totalizer function.
