CS INSTRUMENTS GmbH & Co. KG was the OEM manufacturer of ENDYS AIR Gas meters with M-Bus from 2010 to the end of 2017. The ENDYS AIR products were previously marketed exclusively by Hochhut GmbH, which is now working with another manufacturer. CS INSTRUMENTS GmbH & Co. KG is now offering the successor to the successful Gas meter itself.
The improved successor to the ENDYS AIR Gas meter now offers all the options for digitizing your Flow measurement for a wide range of industrial gases and is the ideal consumption meter for Industry 4.0.
Our M-Bus flow meters have been metrologically improved and completely revised. In addition to the M-Bus interface, the measuring devices also have the following additional outputs and bus systems:
- Modbus RTU
- Modbus TCP or TCP PoE
- Profibus, Profinet
- 4...20 mA and Pulse
- Hart ( in preparation)

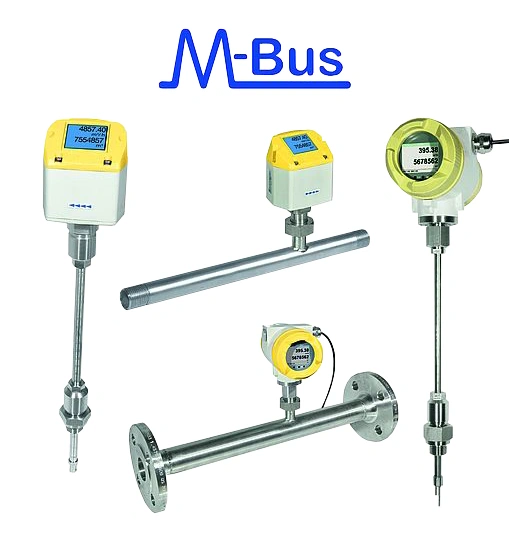

The VA 520, VA 500, VA 550 and VA 570 gas meters with M-Bus are therefore the ideal M-Bus compressed air meters or M-Bus gas meters for industrial gases such as Natural gas, Biogas, Methane, Nitrogen, Argon, Carbon dioxide, etc.
The Flow meters with M-Bus are perfectly suited for retrofitting, upgrading and new installation of Gas meters, compressed air meters and Flow measurement devices to existing and upcoming building management systems and energy management software in accordance with DIN ISO 50001 and DIN ISO 16247.
Please contact us if you have any questions regarding our new M-Bus product line.
Details
- Direct display in Nm3/h, or Nl/min and temperature in C°
- Calorimetric measuring principle - no additional pressure and temperature measurement necessary
- High measurement accuracy ¼ to 3 inches
- VA 500 and VA 550 insert version from ½ inch to DN 400 / DN 500
