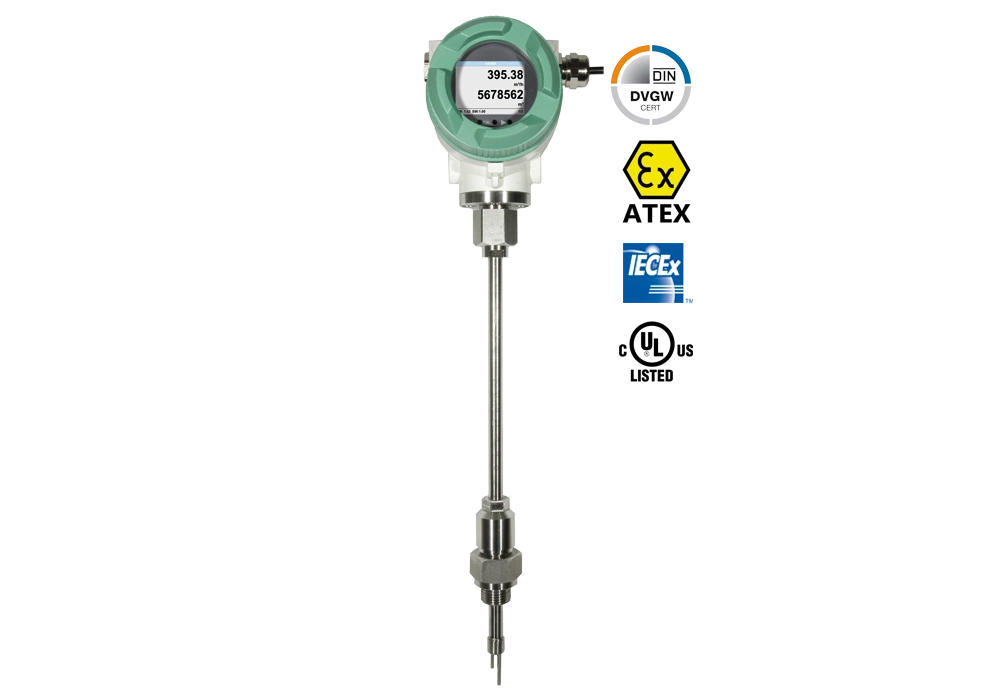

Record and reduce your energy costs and increase your Sustainability with the VA 550. Monitor your Consumption and analyze your leakage flows with just one measuring device. Due to its design, it is also ideal for Portable Measuring.
Details
- All wetted parts are made of stainless steel, especially for applications with high demands on purity and surface quality
- Rough industrial applications possible thanks to robust aluminum housing
- Recommended for flammable gases such as natural gas, hydrogen, biogas, etc. thanks to ATEX + IECEx or DVGW approval
- Measurement of the mass flow, direct output of the standard volume flow
- Highly accurate for both small and large flow rates
- Pressure and temperature-compensated thanks to the thermal mass flow principle
- Quick and easy installation via a standard ½'' ball valve
- No moving parts, therefore low maintenance
- Disappearingly low pressure loss, as the blockage of the diameter is negligible
- 04…20 mA, pulse and a Modbus RTU (RS 485) interface as standard, optional interfaces such as Modbus TCP (Ethernet), PoE, M-Bus
- Pressure range up to 50 bar, special version up to 100 bar
- Media temperature range up to 180 °C (ATEX + IECEx version up to 120 °C)
- Protection class IP 67 (IP 65 for ATEX + IECEx II 2D Ex tb IIIC T90°C Db)
- Integrated display to show the measured values
- Suitable as insertion version for 3/4” to DN 1000
- Simple installation under pressure
- Settings can be adjusted using the buttons on the display
- Main meter reading can be reset via the display
- For speeds up to 224 Nm/s
- Highly accurate with an accuracy of ± 1.5% or ± 1% of the measured value - As well as ± 0.3 % of the final value
V.05
