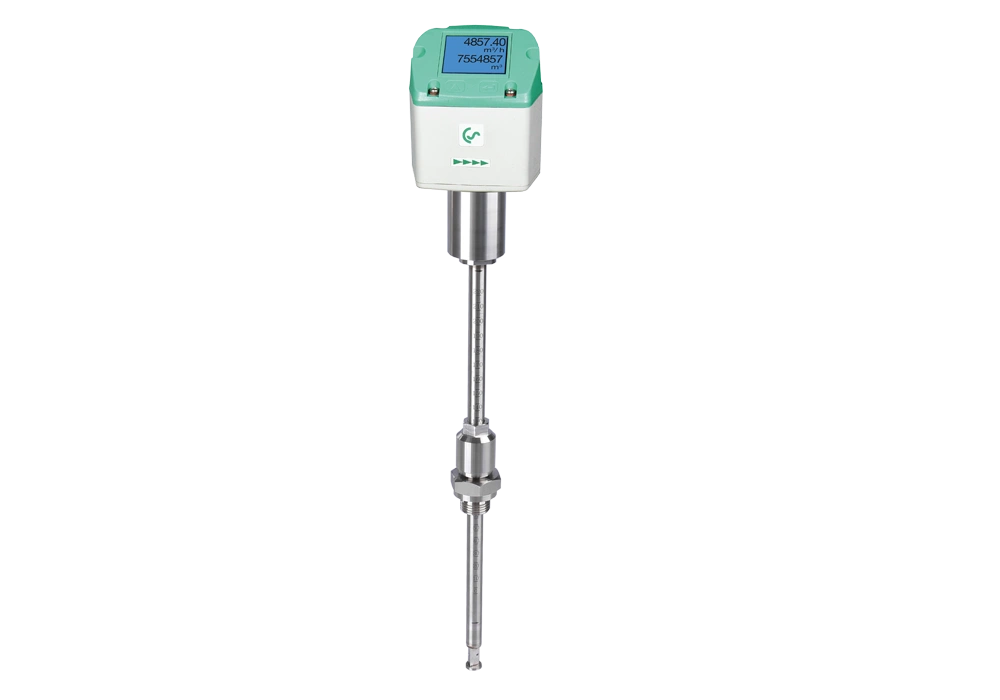

Reduce your energy costs and increase your efficiency with the VD 500. Suitable directly for measurement after the compressor. Monitor the delivery rate of your compressor and create a FAD analysis.
- Measurement immediately downstream of the compressor
- Measurement at high temperatures
Details
- New: Unique sensitivity in the lower measuring range: Measures from as little as 2 m/s and thus covers the complete operating range of variable speed drive (VSD) compressors
- Particularly suitable for extremely high flow rates
- Flow, total consumption, temperature and pressure
- Measurement at high temperatures, max. temperature 180 °C
- Can be used in pipes from DN 20 to DN 600
- Installation via 1/2" ball valve under pressure
- Measurement of the capacity of compressors
- Compressed air audits
- Efficiency measurement of compressed air systems
- After functioning water separator
- In horizontal lines (recommended) or in risers
- 04…20 mA, pulse and a Modbus RTU (RS 485) interface as standard
- Optional interfaces like Modbus TCP (Ethernet), PoE, M-Bus
- Pressure range up to 30 bar
- Temperature of the medium -30 ° … +180 °C
- Integrated display to show the measured values
- Available from DN20 to DN500
- Easy installation under pressure
- Settings adjustable via the keys of the display
- Main counter reading can be reset via the display
- Can be used for velocities up to 600 Nm/s
- High accuracy with 1.5% deviation of the measured value
